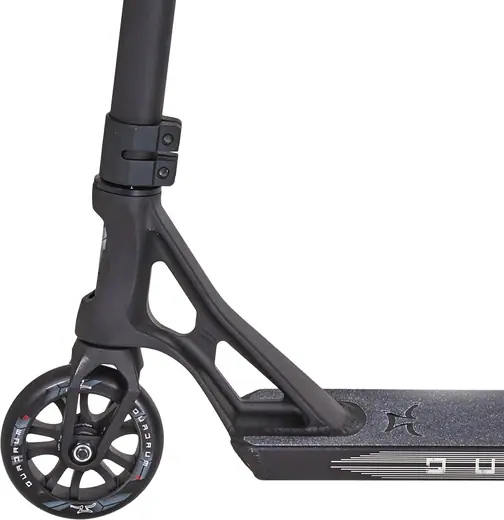

AO Quadrum 3 Pro Scooter

Description

For all you street riders out there - It is time to get wide and big. The AO Quadrum 3 complete scooter has all the boxes ticked in regards to current pro scooter trends towards wider decks combined with the demands from team riders for longer drop-outs. The tail has flat welded drop-outs that run the full length of the deck making 5'0s, frontside feeble and 50s easy to pull.

On this complete setup AO has applied a 4.8" deck to a combination of really nice parts. The Diamond fork, Raptor Helium bar, and Slim grips. The specific combination of parts make this pro scooter very light despite its bulky size.

Specifications

Total height:

83.5cm (32.9")

Compression type:

IHC

Wheel diameter:

110mm

Weight:

127.41oz

Headset type:

Integrated 1 1/8"

Fork type:

Threadless

Deck design:

One-piece

Deck length:

20.5" (52cm)

Deck width:

4.8" (12.2cm)

Dropout Shape:

Peg-cut

Concave:

Yes

Fork design:

One-piece

Bar material:

Aluminum 6061

Bar outer diameter:

35mm (Oversized)

Bar inner diameter:

32mm

Backsweep:

Yes

Wheel profile:

Round

Wheel hardness:

87A

Wheel hub width:

24mm

Core material:

Aluminum

Core design:

Hollow

Axle diameter:

8mm

Brake type:

Flex Fender

Assembly:

Partly assembled
